100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting

  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
Lugar de origem Cantão, China
Marca Miracle Bean
Certificação CE RoHs
Número do modelo XH-G10021P24 (RGBW) -D1A
Quantidade de ordem mínima 100 unidades
Preço negotiate
Detalhes da embalagem Caixa
Tempo de entrega 3-15 dias
Termos de pagamento T/T, União Ocidental, L/C
Habilidade da fonte 50000 unidades por mês
Detalhes do produto
Item Fonte de luz pontual LED endereçável DMX512 Modelo XH-G10021P24 (RGBW) -D1A
Tamanho 100mm Fonte de luz LED SMD3535
Led chip Qty 21pcs Poder Máx. 5,8 W
Tensão de entrada CC 24V Protocolo de controle DMX512
Cor RGBW Ângulo de feixe 160 °
Classificação IP IP67 Comprimento do fio Padrão 120 mm (personalizável)
Temperatura de trabalho -20 ℃ ~+60 ℃ Vida útil 50.000 horas
Garantia 2 anos Tipo de instalação Superfície montada
Aplicativo Iluminação externa de fachada de edifício
Destacar

DMX512 Addressable RGBW IC Control

,

1.5W SMD3535 Point Light Source

,

30mm IP67 Outdoor LED Pixel
Deixe um recado
Descrição de produto
100mm IP67 DMX512 Addressable RGBW LED Point Light SMD3535 24V for Building Facade Outdoor Lighting

Professional DMX512 addressable LED point light source featuring SMD3535+IC chipset with 4 high-brightness LED beads, 16.7M RGBW colors, and 65536-level grey scale for ultra-smooth color transitions at 30fps. IP67 waterproof rated with UL certified 2220 copper wire for permanent outdoor architectural lighting installations.

Technical Specifications
Model XH-G10021P24(RGBW)-D1a
Size 100mm
LED Light Source SMD3535
LED Chip Quantity 21pcs
Rated Power Max 5.8W
Input Voltage DC 24V
Control Protocol DMX512
Pixel Per Channel 5
Color RGBW
Beam Angle 160°
IP Rating IP67
Working Temperature -20℃ ~ +60℃
Wire Length 120mm Standard (Customizable)
Life Span 50000 Hrs
Warranty 2 Years
Key Features
  • RGBW Colors: 65536-level grey scale per channel delivers cinematic-quality color depth and smooth transitions
  • SMD3535+IC Integrated Chipset: Built-in driver IC reduces external component count and simplifies wiring
  • 21 High-Brightness LED Beads: Delivers max 5.8W output with excellent luminance for outdoor visibility
  • IP67 Waterproof Rating: Fully sealed for permanent outdoor installation in rain, snow, and extreme environments
  • Wide Operating Range: Functions reliably from -20℃ to +60℃ for global deployment
  • 120mm Standard Wire with Customization: Default 120mm wire length adaptable to project-specific requirements
Applications

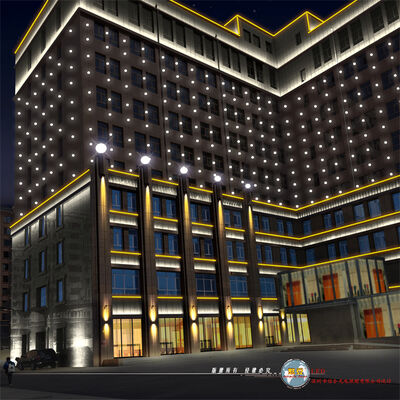

  • Building Facade Lighting and Media Facades
  • Bridge and Landmark Architectural Illumination
  • Commercial Plaza and Shopping Mall Decorative Lighting
  • Theme Park and Entertainment Venue Dynamic Displays
  • Stage Backdrop and Large-Scale Grid Screens
  • Outdoor Bar Screens and Mesh Display Systems
Our Services
  • Guaranteed 24-hour response time
  • Comprehensive English communication for all inquiries
  • OEM & ODM services available
  • Distributorship programs for proprietary designs and select standard models
  • Structured protection of sales territories, design IP, and confidential data
  • Lifelong technical support commitment
  • Optimized delivery framework: Stock models dispatched immediately, samples shipped upon payment, bulk orders fulfilled within 7 business days, custom projects within 15 business days
Trade Details
Payment Methods T/T, Western Union, Paypal, L/C
Port Shenzhen
Delivery Time 3-5 days for stock models; 7 working days for bulk orders; 15 working days for OEM/ODM orders
Packing Packed in carton
Shipping By air, by sea, express are supported
